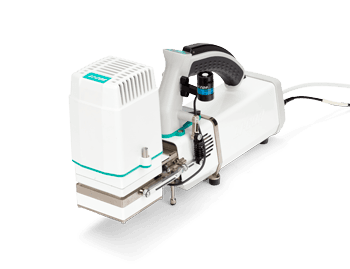

Large Light Source

The Large Light Source (6800-03) provides irradiance with any combination of red, green, blue, and white light (up to 2400, 1000, 2000, and 1500 µmol m^-2 s^-1 respectively). It features a precision reflector to provide highly uniform lighting of the leaf surface. An integrated silicon photodiode measures PAR above the leaf to provide real-time measurements of irradiance in the chamber. The Large Light Source is compatible with the Large Leaf and Needle Chamber, the Small Plant Chamber, and the Bryophyte Chamber.

Get a Quote

Specifications

Total Output Range: 0 - >2500 µmol m^-2 s^-1 at 25 °C
Blue Output Range:>2000 µmol m^-2 s^-1 at 25 °C
Green Output Range: >1000 µmol m^-2 s^-1 at 25 °C
Red Output Range: >2400 µmol m^-2 s^-1 at 25 °C
White Output Range: >1500 µmol m^-2 s^-1 at 25 °C
Blue Peak Wavelength: 453 nm
Green Peak Wavelength: 523 nm
Red Peak Wavelength: 660 nm
White Color Temperature: 4000 K
Uniformity: ±10% over 90% of the aperture
Power Consumption: 15 W at 2000 µmol m^-2 s^-1 equal parts red, green, blue, and white
Operating Temperature Range: 0 – 50 °C
Operating Relative Humidity Range: 0 – 85%
Size: 11.7 × 11 × 13 cm (L × W × H)
Weight: 0.54 kg

Specifications subject to change without notice.
