Specifications
Hughes 9502 Specifications
Satellite RX Frequency: @1518 – 1559 MHz
GPS Frequency: @1574.42 – 1576.42 MHz
9502 Module
Weight: 1.12 kg
Dimensions: 150 mm x 200 mm x 45 mm
Water and Dust Resistance: IP-40 compliant
Nominal Input Voltage: 12 VDC/24 VDC
Power Consumption:
Transmit: <20W
Narrow Beam w/o Transmit: 3W
Idle: <1W
Off (wake on packet): <10mW (@12 VDC)
Off (wake on packet): <30mW (@24 VDC)
Off (GPIO control): 0W
Data Connectivity: RJ45 (Ethernet); USB
Antenna
Weight: 1.85 Kg (excluding mount and cable)
Dimensions: 385 mm x 385 mm 33 mm
Wind Loading: Survival wind loading (with mount) up to 100 mph
Water and Dust Resistance: IP-65 compliant
Antenna Cable Length: 10 m
Operating Temperature Range: -40° C to 75° C
Storage Temperature Range: -55 °C to 75 °C
Humidity Range: 95% RH at 40 °C
Other Features:
Single external BGAN Satellite and GPS antenna connection
GPS module inside 9502 module
3 status LEDs
Antenna point audio tone and voltage level indicator through audio jack.
SIM/USIM Slot (behind SIM door)

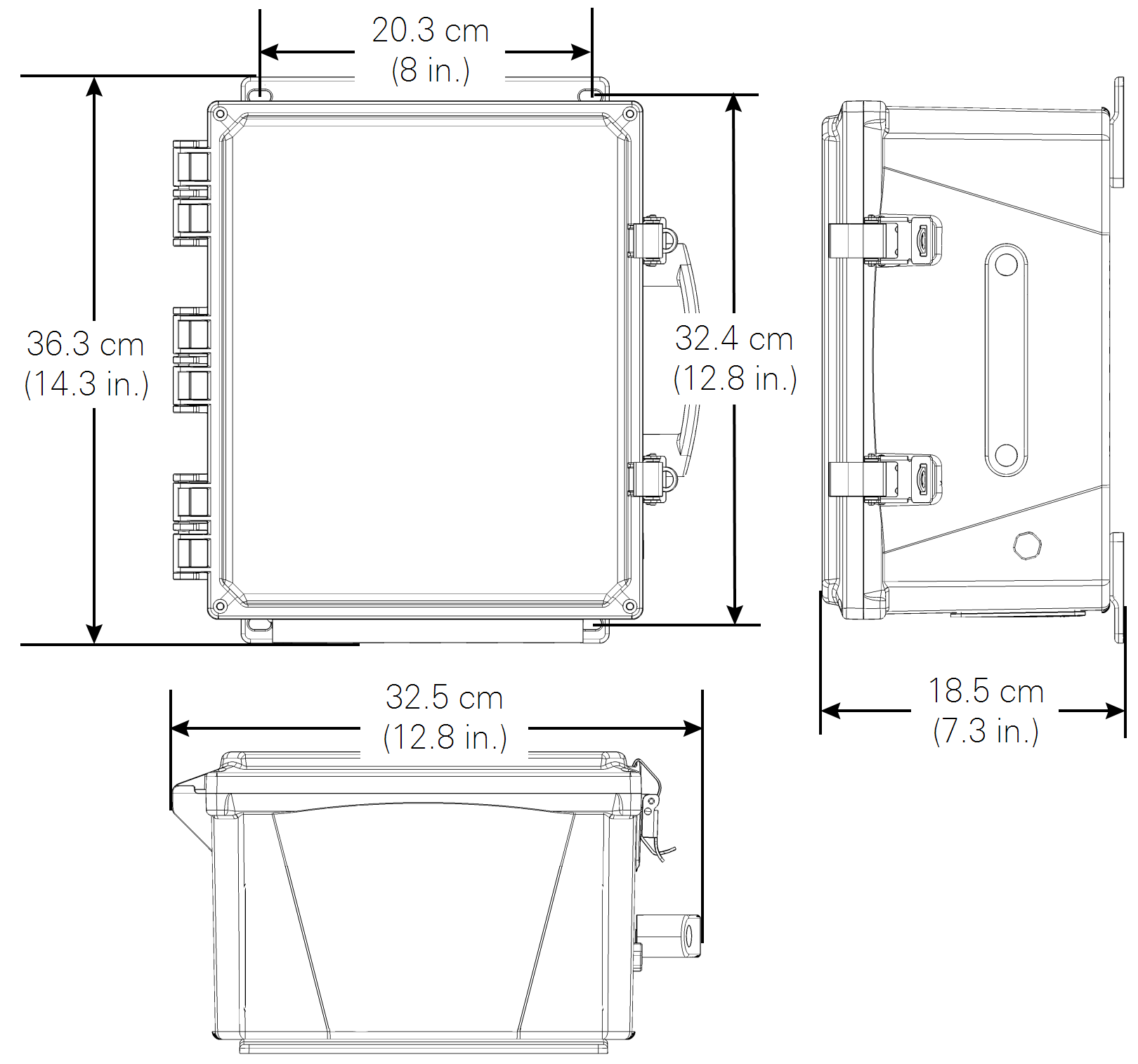

Enclosure Dimensions
