Components
The tripod includes the following components. If you have just taken delivery of your shipment, check to be sure it includes everything that you ordered.

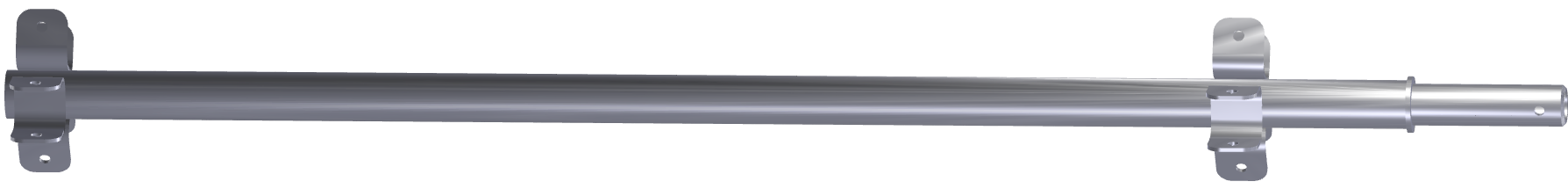

Lower Mast (1): 1.95 m (6'5") long; 6 cm (2.375") Outside Diameter (OD) Schedule 40 Aluminum Pipe 6061-T6.
Part Number : 9879-014
Upper Mast (1): 1.95 m (6'5") long; 6 cm (2.375") OD Schedule 40 Aluminum Pipe 6061-T6.
Part Number: 9879-009

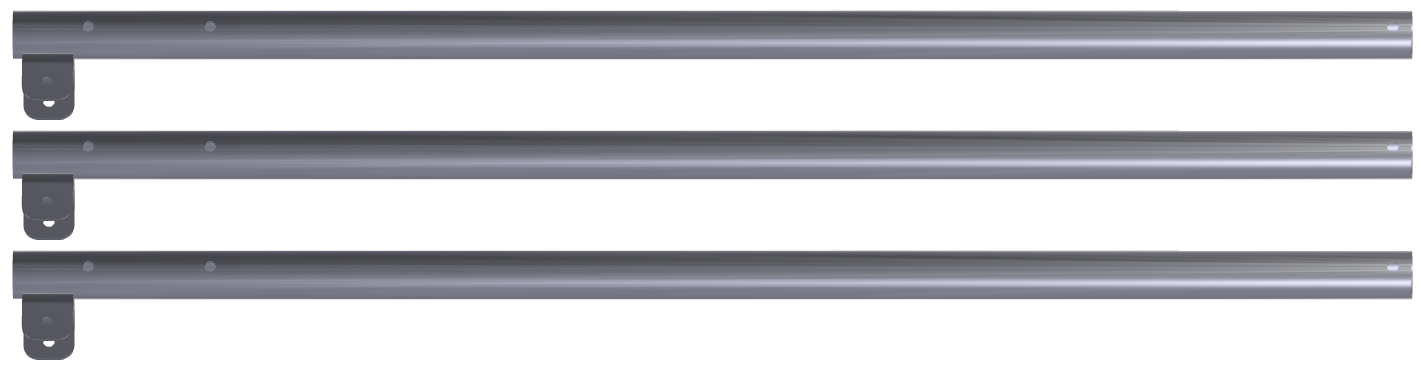

Legs (3): 1.75 m (5'9") long; 6 cm (2.375") OD Schedule 40 Aluminum Pipe 6061-T6.
Part Number: 9879-0006

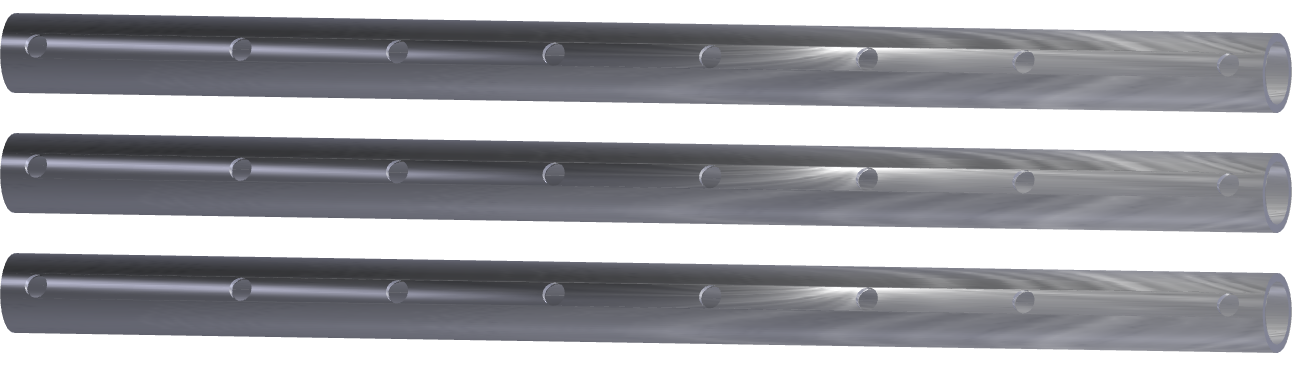

Leg Extensions (3): 0.82 m (2'9") long; 4.8 cm (1.9") OD; Schedule 80 Aluminum Pipe 6061-T6.
Part Number: 9879-012

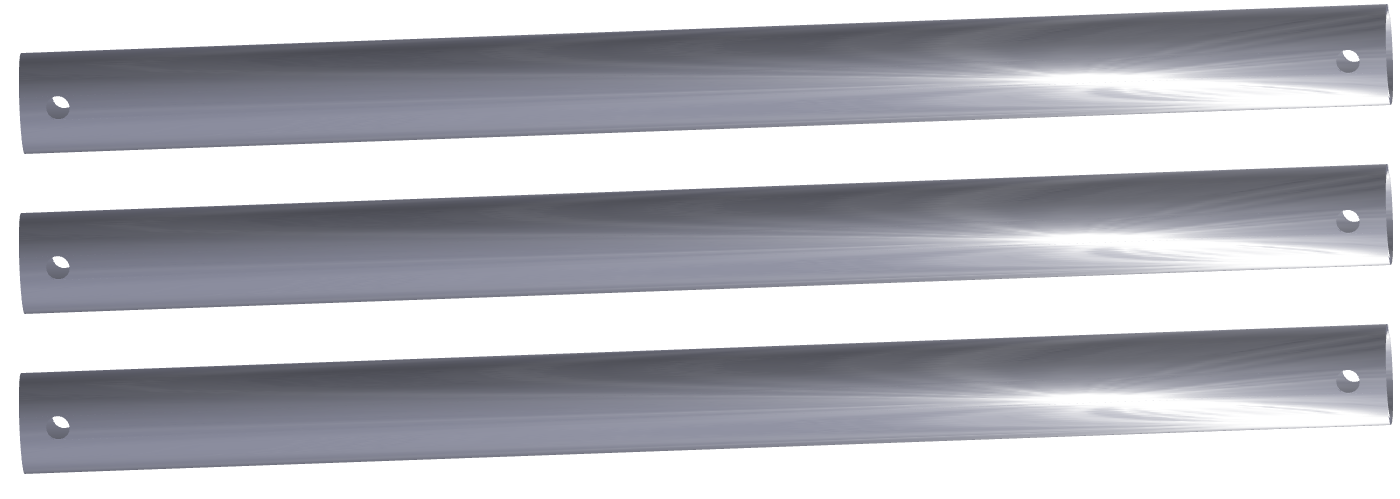

Leg Braces (3): 0.82 m (2'9") long; 6 cm (2.375") OD Schedule 40 Aluminum Pipe 6061-T6.
Part Number: 9879-015
Feet (3): 28.5 cm x 28.5 cm (11.25" x 11.25").
Part Number: 9879-011

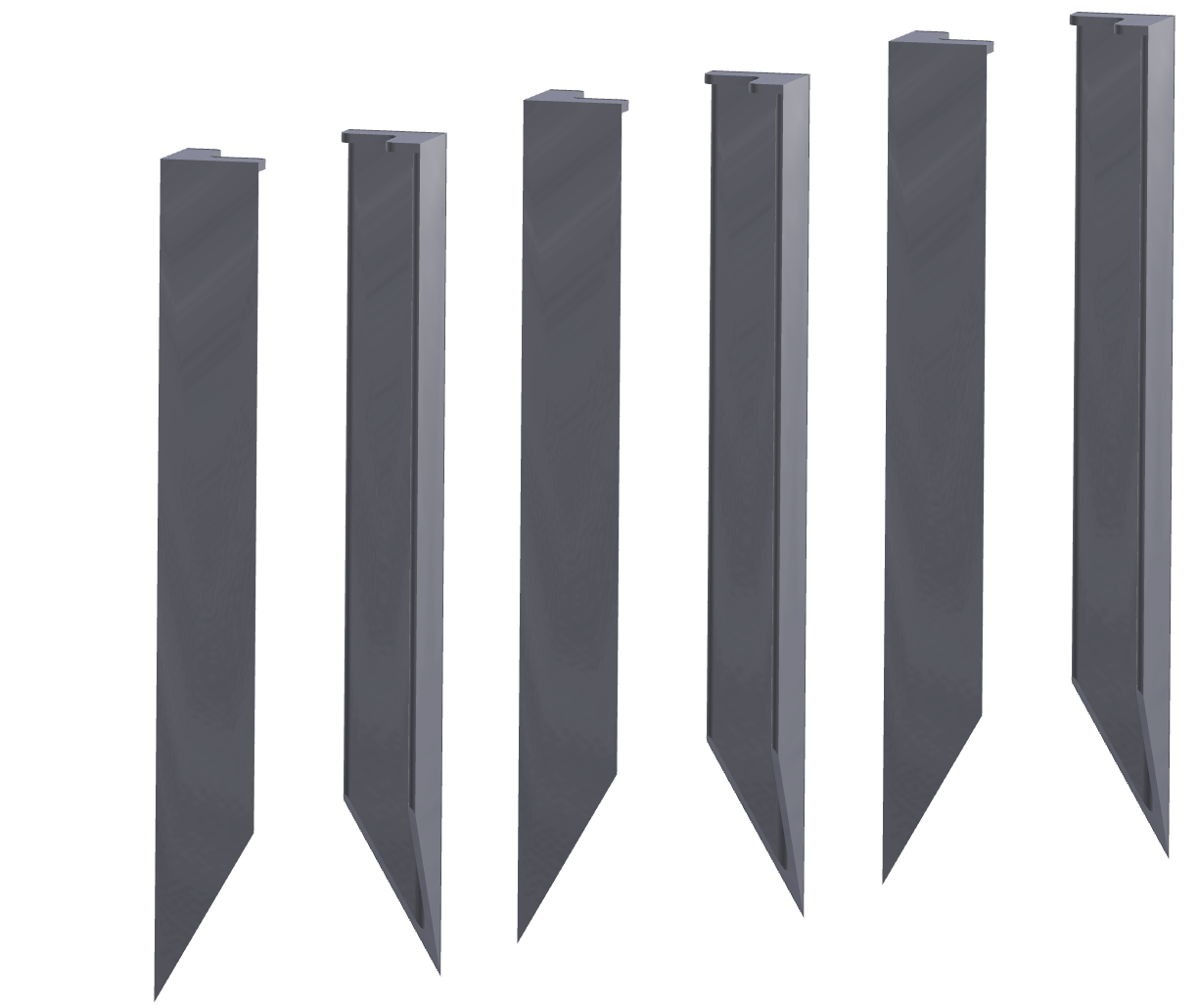

Foot Stakes (6): 42.5 cm (16.7") length.
Part Number: 9879-028
Tripod Assembly Hardware: To assemble the mast, legs, and feet of the tripod structure. Includes sixteen M12 19 mm, 90 mm long bolts; sixteen M12 19 mm nuts; thirty-two M12 washers; sixteen M12 lock washers; stainless steel (part number 9979-017).
Cross Arm and Hardware
Each tripod includes a cross arm and cross arm mounting hardware. An additional cross arm with hardware is available as part number 7900-330, or parts can be purchased individually (see Cross Arm Kit and Accessories).
Cross Arm (1): 1.5 m (59") long, 3.3 cm (1.3") OD Schedule 80 Aluminum Pipe 6061-T6.
Part Number: 9879-010
Cross Arm Mounting Plate: For mounting the cross arm to the tripod mast.
Part Number: 9879-020
Cross Arm Brackets (4): For mounting the cross arm to the mast.
Part Number: 9879-043
Cross Arm Mounting Hardware Kit: For mounting the cross arm to the tripod mast.
Part Number: 9979-018
Guy Wire Kit
Part Number: 9979-003
They guy wire kit includes a fitting and bolt for attaching wires to the mast, guy wires, gripple clasps, duck-bill anchors, thimbles, a driving rod, and a release key.

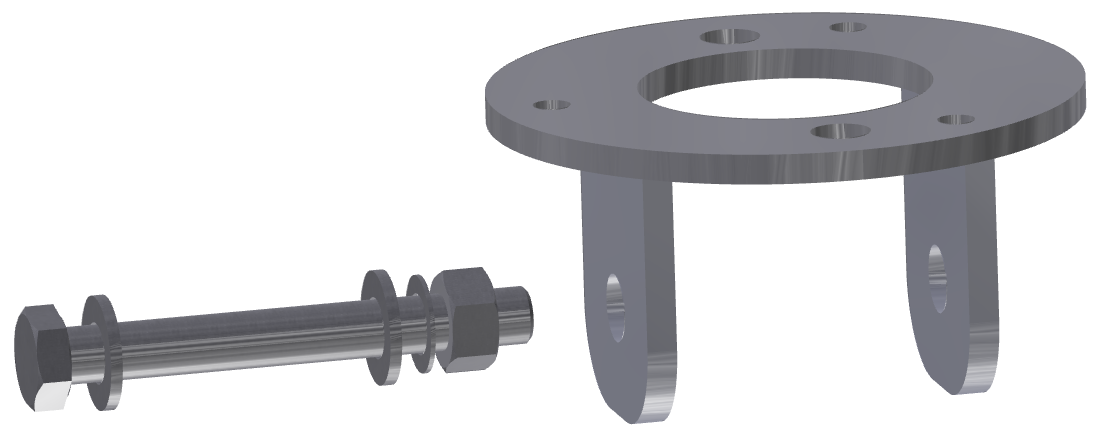

Guy Wire Fitting and Hardware (1): Aluminum 6061-T6.
Guy Wires (3): 7.62 m (25') Zinc-aluminum Coated Steel.

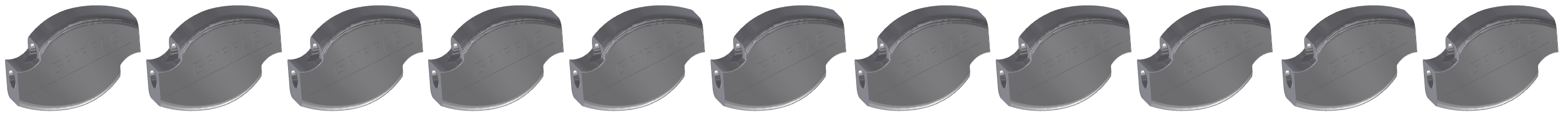

Gripple® Cable Clasps (11): Gripple Plus Medium.

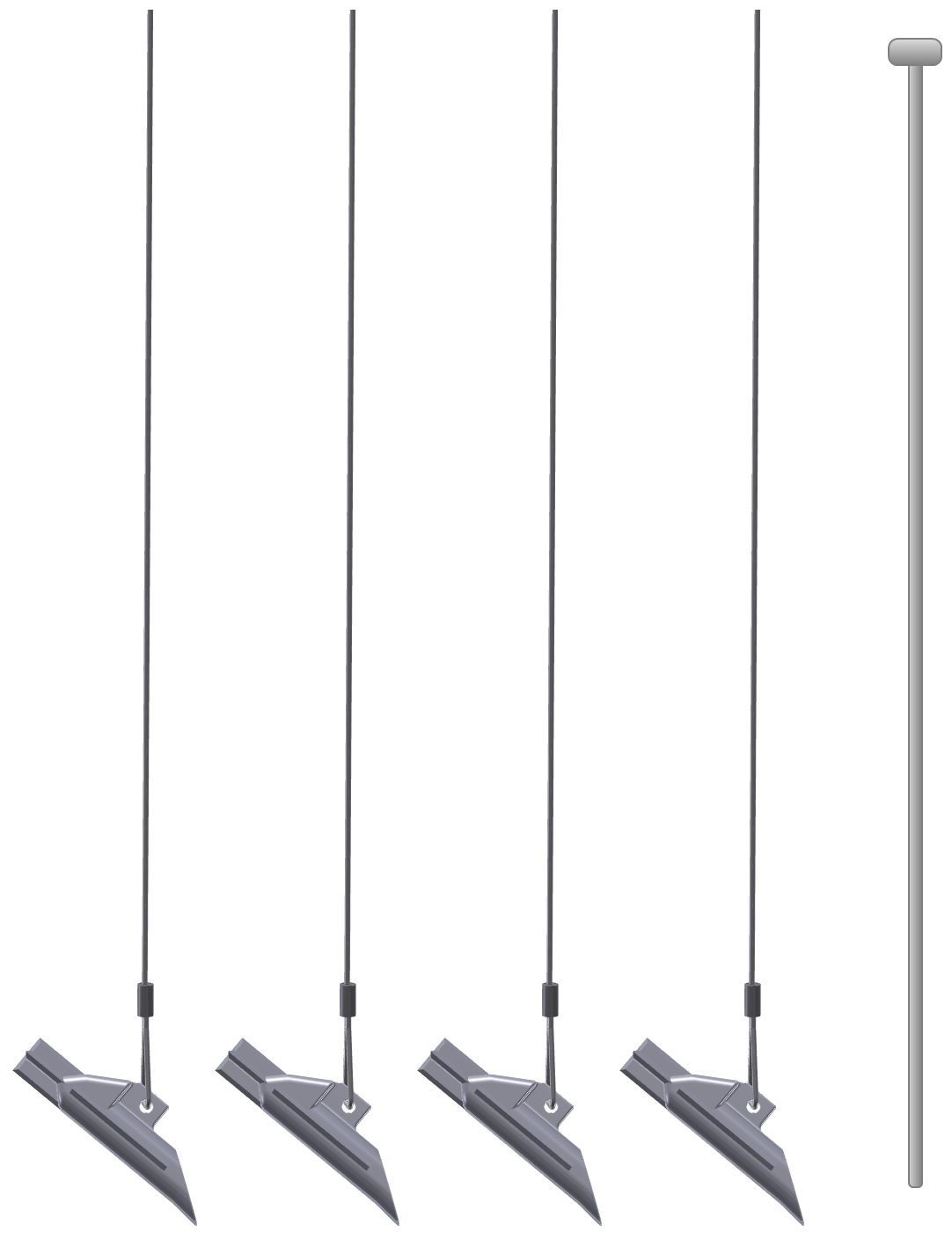

Duckbill® Anchors (4): Model 68 Duckbill® Earth Anchors w/ 168 cm (66 inch) Cable.

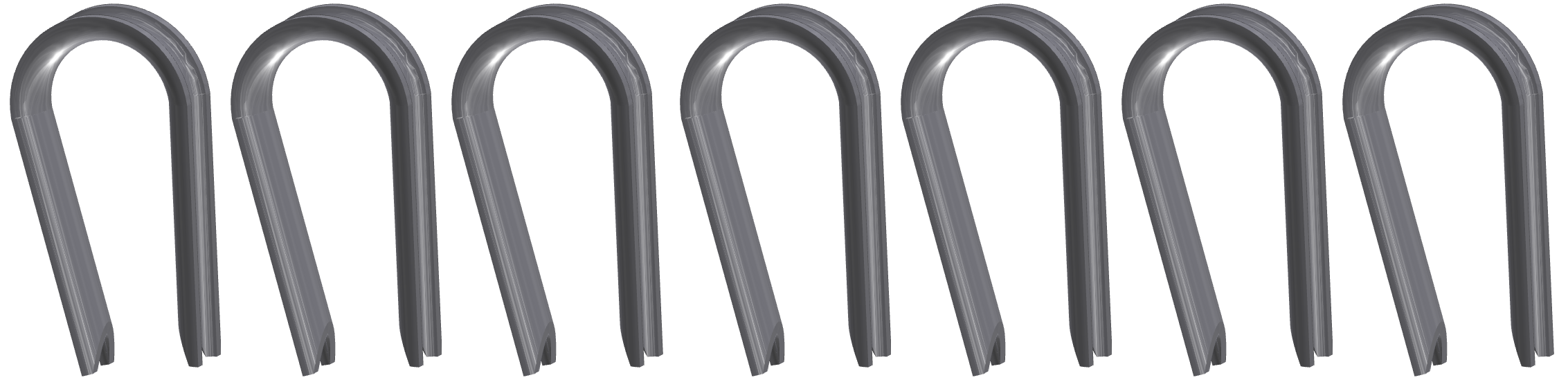

Cable Thimbles (7): 0.32 cm (0.125") Open Thimble

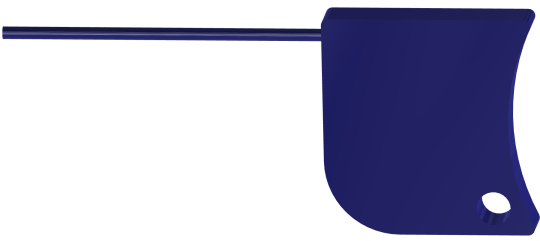

Gripple® Release key (2) - "Blue Flag Key"
Grounding Kit
Part Number: 9979-004
The grounding kit includes hardware to ground the tripod and components to earth.

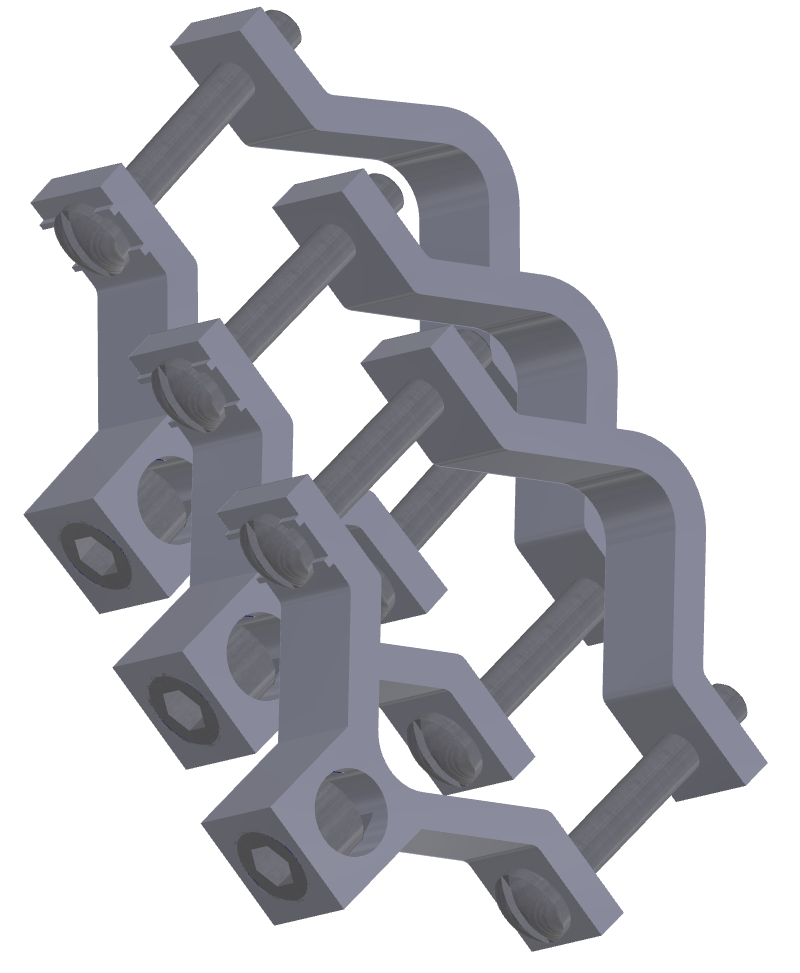

Lightning Rod/Ground Wire Clamps (3): To secure the lightning rod and ground wire to the mast.

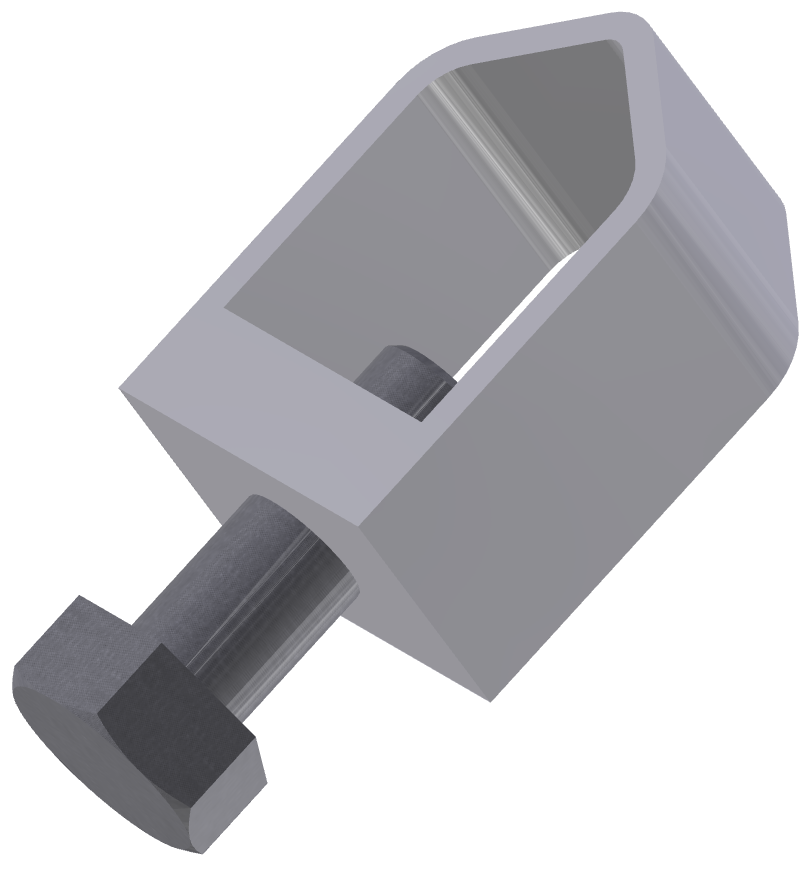

Ground Rod Clasp (1): To secure the ground wire to the ground rod.
Ground Wire (1): 1.22 m (4'), 8 AWG Copper Wire.
Ground Rod (1): 1.83 m (6') long; 1.6 cm (0.63") OD
Lightning Rod (1): 1.83 m (6') long; 0.3 cm (0.12") OD

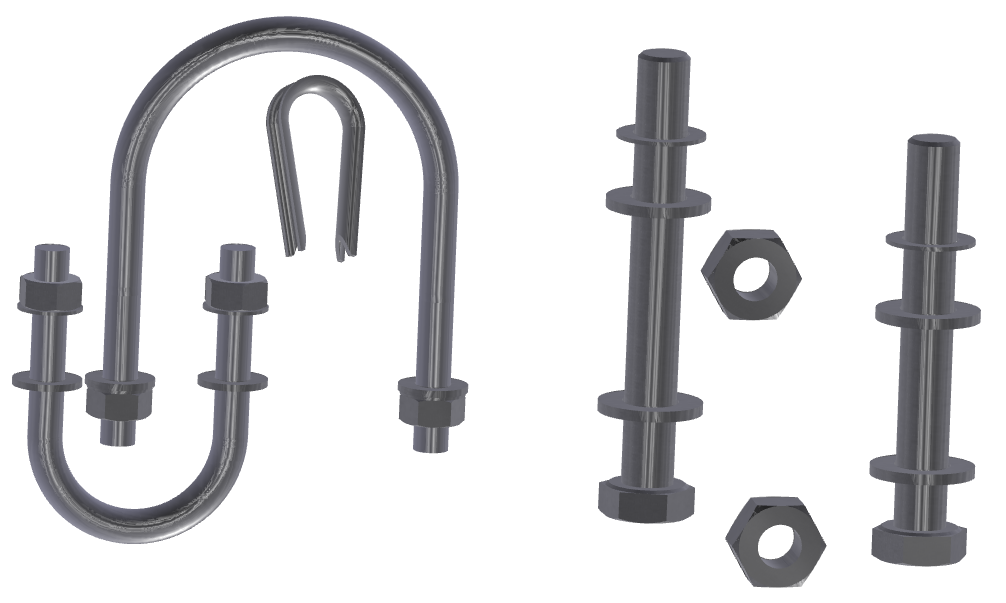

Spare Parts: Includes extra U-bolts, washers and nuts for the cross-arm, extra 90 and 100 mm bolts, washers, and nuts, and an extra cable thimble.
Component List
| Component | Part Number |
|---|---|
| Tripod | |
| Lower Mast (1) | 9879-014 |
| Upper Mast (1) | 9879-009 |
| Legs (3) | 9879-006 |
| Leg Extensions (3) | 9879-012 |
| Leg Braces (3) | 9879-015 |
| Feet (3) | 9879-011 |
| Foot Stakes (6) | 9879-028 |
| Assembly Hardware | 9979-017 |
| Cross Arm Mounting Hardware (1) | 9979-018 |
| Cross Arm Mounting Plate (1) | 9879-020 |
| Cross Arm Brackets (4) | 9879-043 |
| Cross Arm (1) | 9879-010 |
| Guy Wire Kit | 9979-003 |
| Tripod Guy Wires (3) | 609-13061 |
| Gripple® Cable Clasps (11) | in 609-13061 |
| Gripple® Release Key (2) | in 609-13061 |
| Earth Anchors (4) | 609-13089 |
| Duckbill® Anchor Drive Rod (1) | 609-12946 |
| Guy Wire Fitting (1) | 9879-018 |
| Guy Wire Fitting Hardware (1) | 9979-019 |
| Cable Thimbles (7) | 609-12899 |
| Grounding Kit | 9979-004 |
| Lightning Rod (1) | 9879-033 (older) or 9879-097 (newer) |
| Pipe Ground Clamps (3) | 609-12523 |
| Ground Rod Clasp (1) | 609-12521 |
| Ground Wire (1) | 374-12937 |
| Ground Rod (1) | 609-12518 |
| Spares Kit | 9979-012 |
| U-bolts, nuts, washers (2) | |
| Bolts, nuts, and washers (2) | |
| Cable Thimble (1) |
