What's what

The LI-6800AQ package is the full LI-6800, fluorometer, and aquatic chamber. It includes some or all of the components described here. The 6800FAQ package includes the fluorometer and aquatic chamber. The 6800-18 package is just the aquatic chamber.

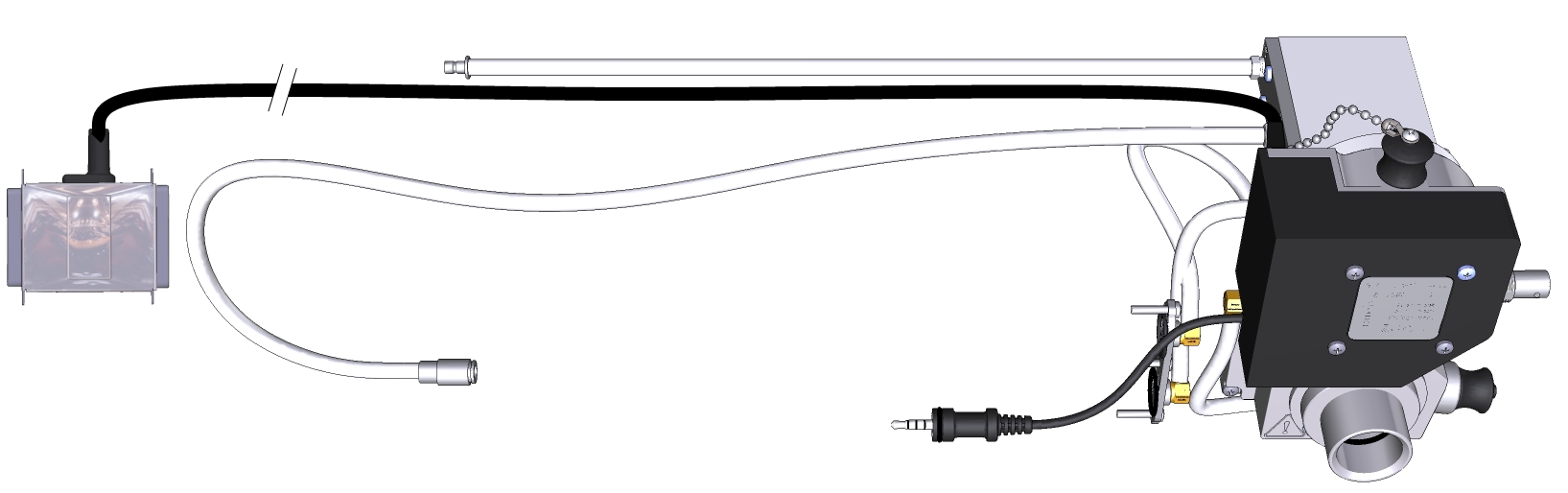

Aquatic chamber

Part Number 6800-18

Without an accompanying fluorometer, the chamber has glass on both sides of the cuvette. It consists of the sample cuvette, water vapor equilibrator, recirculation pump, light sensor aperture, electronics, and additional hardware. A labeled schematic is in Figure 10‑2.

Figure 10‑16. The aquatic chamber attaches to a 6800-01A fluorometer as an aperture. It replaces the lower portion of the chamber. See Installing the fluorometer chamber for fluorometer installation instructions.

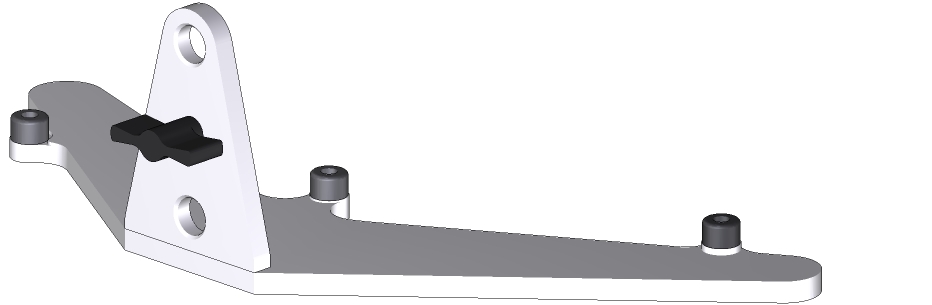

Stand

Part Number 9968-329

The stand supports the head and aquatic chamber assembly.

Aquatic chamber spares kit

Part Number 9968-333

The aquatic chamber includes an accessories kit, which has a few spare parts and other things you need to use the chamber.

The 6800-18 includes the following items:

Description Quantity Part Number
Chamber 1 9968-319
Chamber Stand 1 9968-329
Accessories and Spares Kit 1 9968-333
30 mL Syringe 1 869-13734
6" Flat-tipped 14-gauge Stainless Steel Needle 1 259-19172
Orifice Cleaning Tool 1 6568-681
Light Sensor Aperture 1 9868-669
Screws; M3×0.5 8 mm; for Perforated Block 2 150-13642
Screws; M3×0.5 20 mm; for H2O Equilibrator 4 150-14321
Screws; M3×0.5 10 mm; for Chamber to Fluorometer 2 150-14430
Screws; M3×00.5 6 mm; for Chamber Windows 8 150-16669
O-ring; 38×1.5 mm; for Chamber Window Interior 2 192-12027
O-ring; 35×1.5 mm; for Window Exterior 2 192-16851
O-ring; 10×1.5 mm; for Fill Port 1 192-14435
O-ring; 48×1.5 mm; for H2O Equilibrator 1 192-16680
O-ring; 16×1.5 mm; for Chamber-to-Head Manifold 2 192-18247
O-ring; 1.5×1.5 mm; for pH Probe Port 2 192-18702
O-ring; 18×1.5 mm; for Perforated Block 1 192-18703
Septa; 3/8"; Silicone/PTFE 5 300-08998
Hose barbs; 10-32 Threads 3 300-12287
Quick Connect Coupler; 0.165" Male Hose Barb 1 300-07124
Quick Connect Coupler with 0.165" Female Hose Barb 1 300-07125
PTFE Hydrophobic Filter; 1-2 µm; 47 mm Diameter 5 301-18701
PTFE Hydrophobic Filter; Custom 28 mm Diameter 5 6568-658
